TECHNICAL SPECIFICATIONS AF HIGH SPEED
Size min/max cm 10×15 / cm 50×70 (with optional extension feeder cm 50×100)
Sheet weight 80 to 600 g.s.m.
Programs 200 programs with 100 creasing or perforating
Min. distance creasing 0,1 mm
Production A4 with 1 crease 10,500 sheets per hour
Power supply 400 Volts three phase + neutro 50 Hz
Power requirement 3,5 Kw
Net weight 180 Kg
Size 170x85x120 cm
Optionals digital scoring kit; perforating kit 2/1 – 3/1 – 4/1 – micro perf.

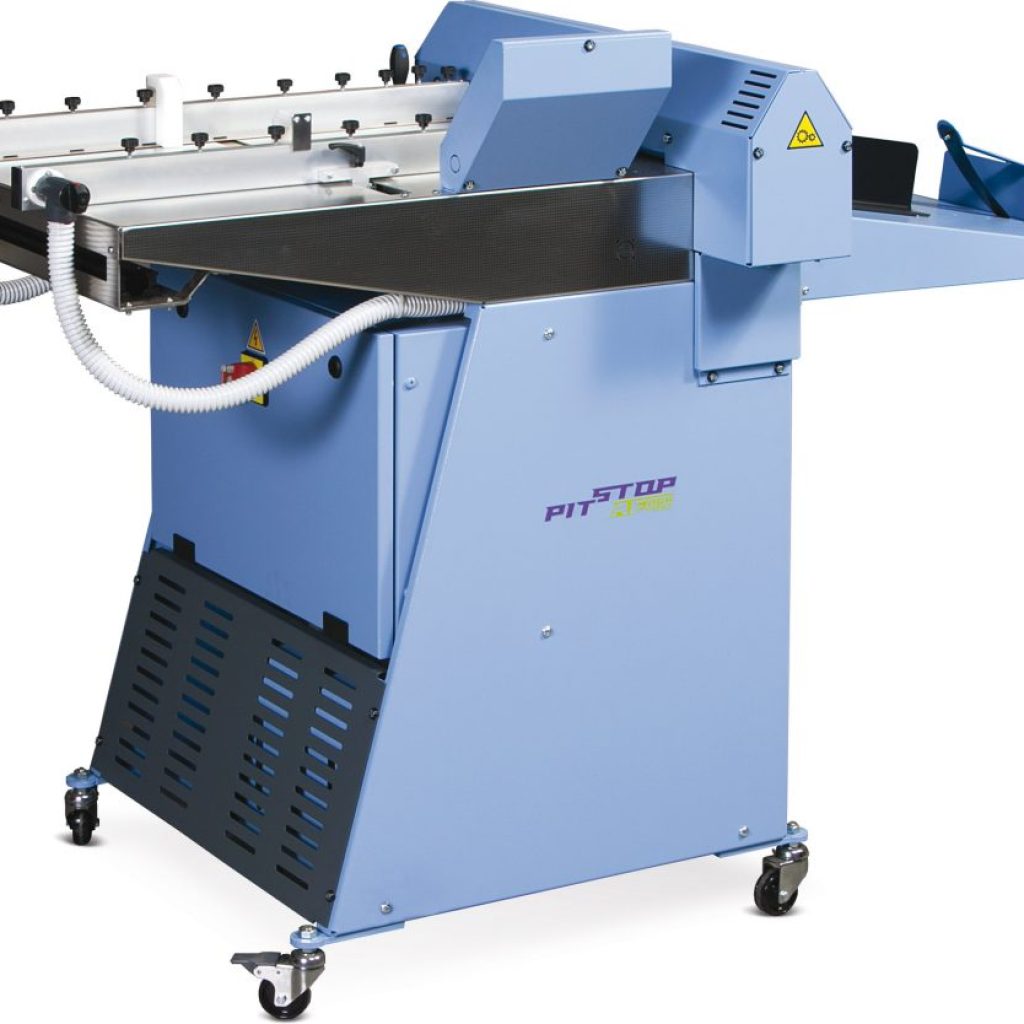

The new flagship model of our creasing machines has taken the flight!
Since the development of the initial AF SPEED project we have significantly improved the accuracy, reliability and overall strength of the machine.
Building on all of our existing technological and sales successes in many of the world’s largest markets, this project has been taken to the next level. The new generation of machines have been developed further by adding some of the latest drive technologies, increasing production speed and by using a touch screen to program the machine, the new PIT STOP AF High Speed is born.
This model is now placed in our product range between the renowned PIT STOP DG LINE 8000 Touch Screen and the high performance PIT STOP FM High Speed.
