folding machine easy flat fold

 TECHNICAL SPECIFICATIONS      EASY FLAT FOLD

Size min/max cm 10 x 20 / cm 51×100
Sheet weight  from 120 to 600 g.s.m
Speed A4 with 1 fold 3500 sheets/h (without crushing)
Power supply  230 Volts 50 Hz single phase
Comperssed air to be supplied by the user  6 bar – 8 NM3/h
Pressure  1,5 ton
Pressure timing adj. between 0,1 to 2.5 sec
Power requirement 1,5 Kw
Net weight 205 Kg
Size 96x96x142 cm + DG LINE creasing machine

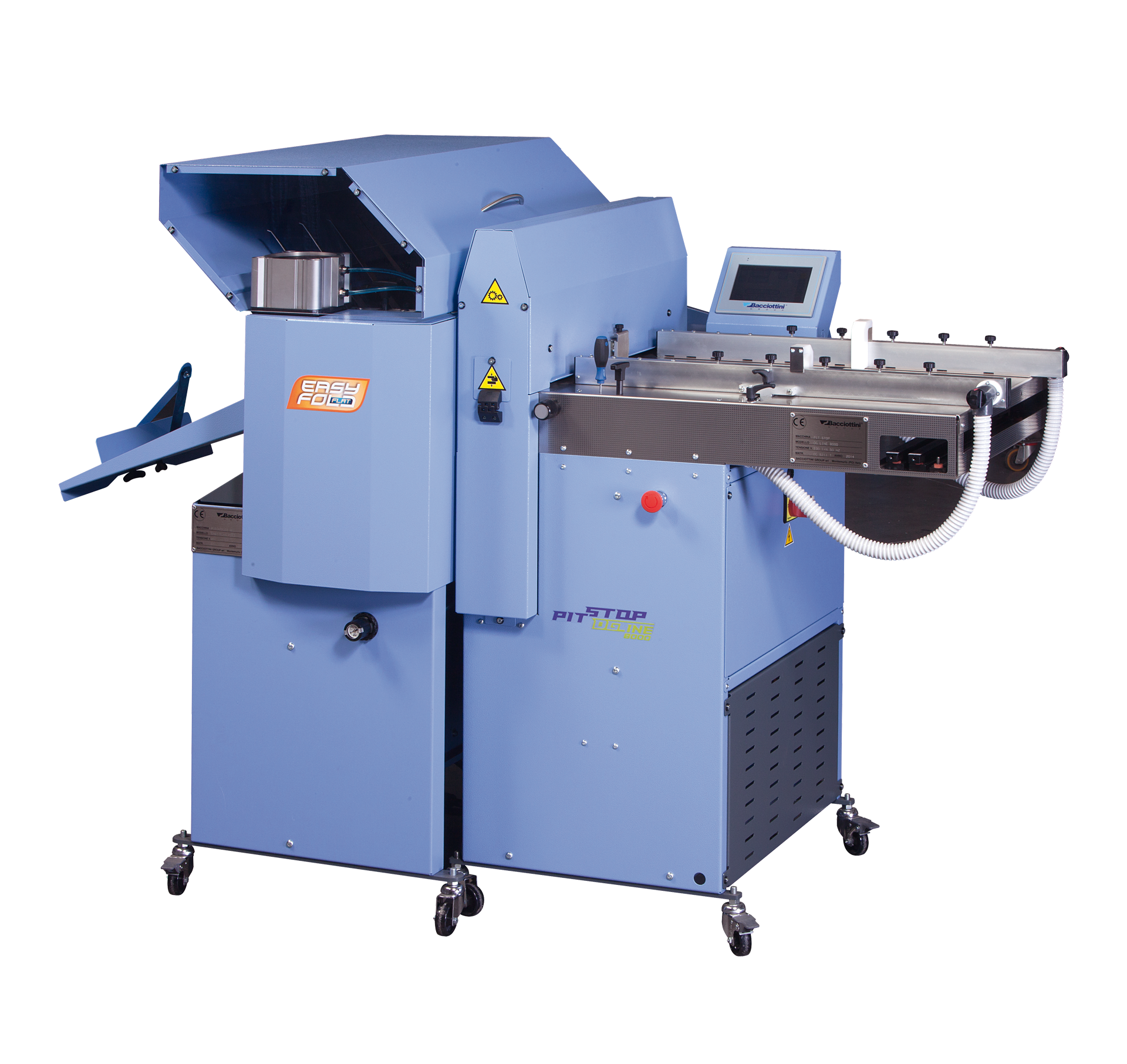

The EASY FLAT FOLD is the new patented folding system that can be positioned in line with any PIT STOP creasing machine. It allows the folding of paper from 120 up to 600 g.s.m. ensuring a perfect crease and fold without the cracking of spine fibres or deforming of the paper and perfect single sheet make ready.
The exit is equipped with a crushing system ensuring the accurate handling and pressing of material without damaging the print, allowing a perfect layout of photo book. Machine can fold matt paper, plastic-coated paper and digital paper. The processed material is collected in a handy output tray.
